AVR microcontroller board: parts for LED array

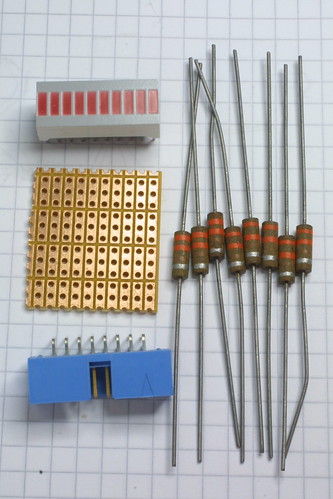

Some recycled parts to make a row of LEDs to plug into the AVR's I/O port. A ten-LED array, some protoyping board, a 16-pin right-angle header and eight 330Ω resistors. I got the LED array out of a scrap telephone control panel, and the resistors were from FreeCycle.
