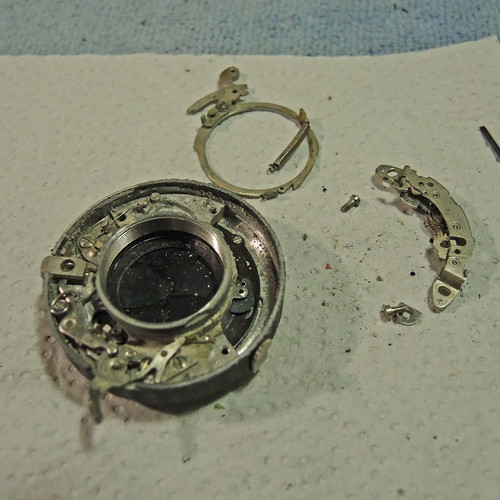

Speed Escapement Removal

First, one has to detach the Main Spring on the Cocking Rack from its anchor point, and then remove the rack. Then the Escapement can be removed by taking out the two screws on the ends, along with the Anchor Point for the Cocking Rack main Spring.
