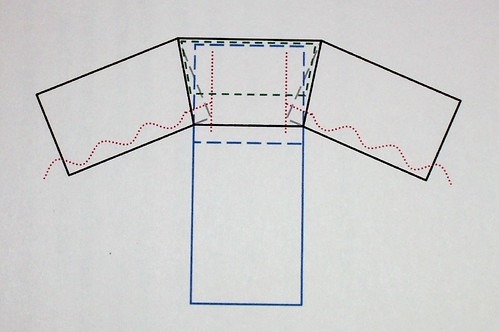

Nose Plan
Black lines show the leading edge outer material with grey showing the inner pleats. This material continues all the way down to the wing tips, forming the leading edge pocket and the nose from one continuous piece. Green doted lines show the reinforcement patch between the outer and inner material. Blue shows the inner-most layer of material for the spine pocket. The red dots show the stiching locations.
