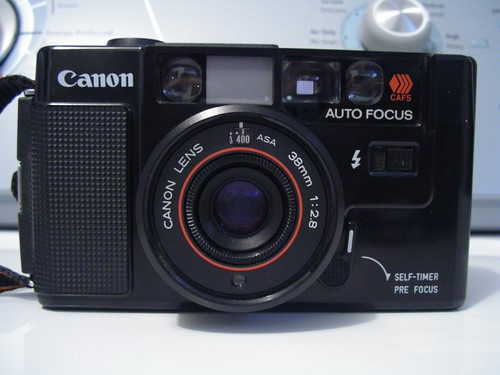

35mm Lens-Shutter autofocus camera with program EE and built-in flash

Picture Size 24 x 36 mm

AF System Triangulation system with near-infrared beam. Prefocus enabled.

Lens 38mm f/2.8 (4 elements in 3 groups)

Shutter Electronically-controlled programmed shutter and aperture. EV 6 (f/2.8 at 1/8 sec.) - 17 (f/16 at 1/500 sec.). Built-in electronic self-timer.

Viewfinder Reversed Galilean viewfinder with projected frames. Within the image area are the AF frame, zone focusing marks for near, medium, and far distances, parallax correction marks, and battery check and camera-shake warning. 0.5x magnification, 85% coverage.

EE CdS cell for full-auto program EE. Metering range of EV 6 - 17 (at ISO 100). Film speed range of ISO 25 - 400.

Built-in Flash Guide No. 14 (at ISO 100 in meters). Manual pop-up. Fill-flash enabled.

Power Source Two 1.5 V size-AA batteries for camera and built-in flash.

Film Loading &

Advance Slotted take-up spool. Advances automatically with built-in motor when the shutter button is pressed.

Frame Counter Counts up. Resets automatically when camera back is opened.

Film Rewind Power rewind with rewind switch.

Dimensions &

Weight 132 x 77 x 54 mm, 405 g
