ZVS Induction Coil €19.66 Aliexpress - 10-12-2019
ZVS Induction Coil
Special Order Transverse coil
€19.66 Aliexpress
Ordered: 12-11-2019
Arrival: 10-12-2019

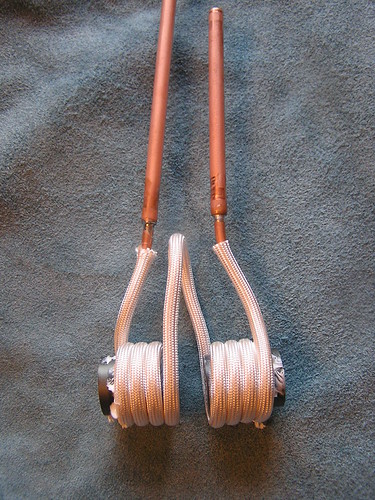

4 weeks to arrive from order date. arrived in a reused cardboard tool box, Coil itself was wrapped in bubble wrap. Smaller than expected, both in overall size and coil tube diameter. The working loops are only 4mm and the legs 6mm. I will have to make 8mm adapter to use it on the bigger machine, not sure how it will like the 4mm tube however.
The coil is made of 3 complete tubes counterwound and with a ferrite in the center. Ferrite is held inplace with silicone and no heatshrink on the fiberglass joing to the coil.
Have not tested it as it seems my small ZVS Driver has died again, no visible problem it just wont fire I suspect problems with the Mosfets. Problems as in the replacements were fried before I got them as I never liked the fact they had solder on them before I even used the.
